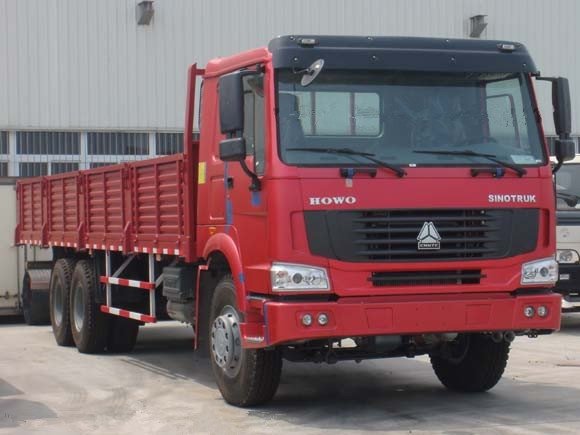

Brand Name

HOWO

Model Number

ZZ1257M4341V

Drive Wheel

6*4

Engine Model

WD615.87

Horsepower/power

286HP/213kw

Emission Standard

Euro2

Gear box

HW15710. 10speed

Steering System

ZF power steering, model ZF8098;

ZF steering oil pump

system pressure 18MPa

Driving Axle/Rear Axle

HW1697 single reduction

Cab  (Volvo Technology)

HW79,high top deck,2 sleepers;air conditioner;

up and down,front and back adjustable steering wheel;

double locking structure belts

Axle Base

4300+1400

Front Axle

HF7, load capacity 7 ton, drum

Tyre

12.00-20;option:11.00-20

More details:

Condition

New

Transmission Type

Manual

Engine Capacity

9.726L

Fuel Type

Diesel

Overall Dimensions

9800*2496*3633 mm

Gross Vehicle Weight

25000kg

Curb Weight (Vehicle/Chassis)

11030/9170 kg

Fuel Tank Capacity

400 L

Rated load

13840 kg ,option:13720kg

Front/rear suspension (Vehicle/Chassis)

1500/(2625/1945) mm

Wheel base (Front/Rear)

2022/1850 mm

Mini ground clearance

267 mm

Approach/departure angle (Vehicle/Chassis)

16/(15/23) Degree

Max.speed

102 km/h

Max. Grade ability

>40%

Mini turning diameter

19m

Container Size

7100*2326*600 mm

Brake

*Service brake: dual circuit compressed air brake

*Parking brake(emergency brake):spring

Energy,compressed air operating on rear wheels.

*Auxiliary brake:engine exhaust brake Option:ABS,EVB
