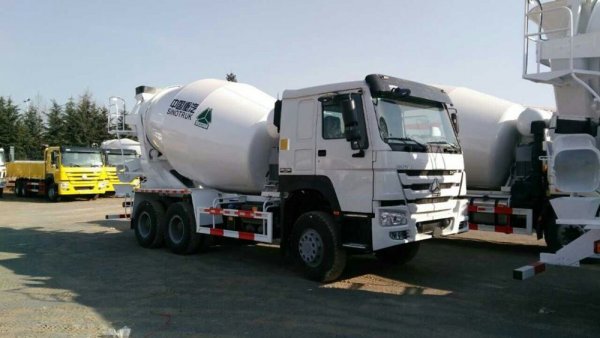

SINOTRUK HOWO 6x4 Concrete Mixer
No.: Kevin210524
Vehicle Type: Concrete Mixer Truck
Brand Name: SINOTRUK
Person in charge: Kevin Jiang
Cel: 0086 176 6971 7518
Whatsapp: 8617669717518
E-mail: sales17@chinatruck.cc
FREE GET QUOTE
Details
SINOTRUK Howo 6x4 Concrete Mixer
Duct | SINO HOWO 6*4 7/8/9/10/12 CBM Concrete Stir Pump Truck | |
Cab | Single row,Left/right hand drive with AC | |
Chassis | Brand | Sinotruck |
Chassis model | ZZ5257GJBZ4ND | |
Drive type | 6x4 | |
Tire Spec. | 12.00R20 | |
Tire Numbers | 10+1 | |
Braking System | Air braking | |
Clutch | Uniwafer, dry clutch, hydraulic remote control | |
Transmission | Manual | |
Engine | Model | WD615.69 |
Horse Power(hp) | 336 | |
Displacement(cc)/ Power(kw) | 9726/247 | |
Emission | EuroIII/EuroIV | |
Main Parameters | Overall dimension (L*W*H/mm) | 10380*2500*3998 |
Wheelbase(mm) | 4205+1350 | |
Axles No. | 3 | |
GVW(kg) | 25000 | |
Curb Weight(kg) | 15230 | |
Leaf spring No. | 9+11 | |
Approaching/Departure Angle | 19/24 | |
Front/Rear track(mm) | 2041/1830 | |
Front/Rear suspension(mm) | 1500/2570 | |
Max speed(km/h) | 90 | |
Front/Rear Axle Load(kg) | 7000/16000 | |
