Drive type

6x4, left hand drive

Cabin

Howo cab,A/C

Main   dimensions

Overall   dimensions （mm）

Approx.   9850x2550x3400

Tank   capacity

27000liters

Wheelbase(mm)

4625+1350

Weight date

Payload

25000liters

Curb   weight(kg)

Approx.11800

Person in   cab (persons)

3

Engine

Model

WP10.340E22

Brand

Weichai

Engine type

In-line 6   cylinders, Turbocharged, inter-cooled, diesel,EURO 2

Displacement   (L)

9.726L

Rated   power(kw/rpm)

250kw

Axles

Front axle

7.5tons

Rear axle

16tons

Brake system

Service   brake

dual circuit   compressed air brake

Parking   brake

Air   discharging with spring control

Auxiliary   brake

engine   exhaust brake

Gearbox

HW19710, 10   forwards，2 reverse,   manual

Steering

ECO108 power   steering

Suspension

Multi leaf   spring suspension front and rear

Wheels and   tire size

 (10+1)    12R22.5

Fuel tank configuration

Tank   capacity

27000liters，4   compartments

Tank   material and thickness

Carbon steel   Q235

Tank:5mm

Discharge   valve

Each compartment with 1 piece discharge valve

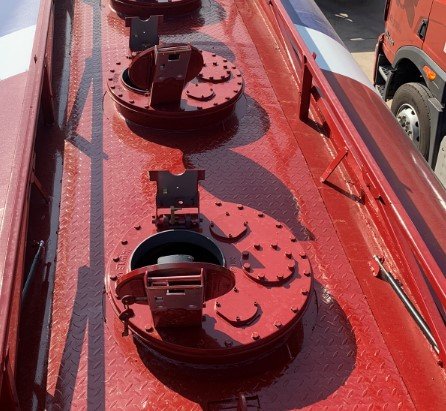

Manhole   cover

4 pieces or   6 pieces European standard manhole cover

Walkway

anti-skid   plates are installed on the top of the tank

Top guard

folding   guardrails are installed on both sides of the top of the tank

Ladder

Welded   independent climbing ladder at the tail of the tank or at the front of tank.（1 piece）

Oil pump

Model:   80YHCB-60

Flow (m3/h):   60

Working   pressure (MPa): 0.6

Rotating   speed (r/min): 970

Allow   suction height (m): 7

Emergency shut-off valve (Sea Valve)

Each compartment with 1 piece emergency   shut-off valve

Anti-static   devices

including   ground towing, static line plate

Fuel dispenser

1 unit Tokheim brand fuel dispenser and 15   meters hose

Fire extinguishers

 2 pieces

Other

Standard   configuration
