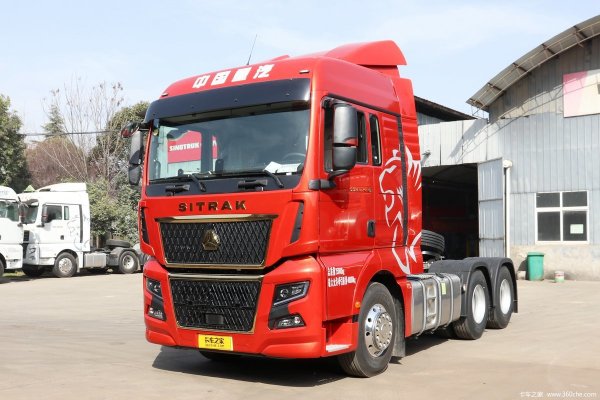

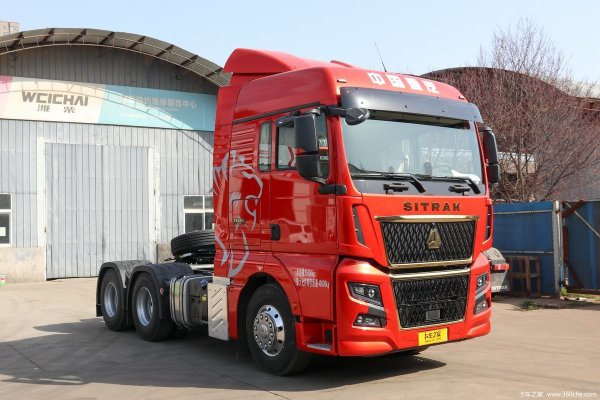

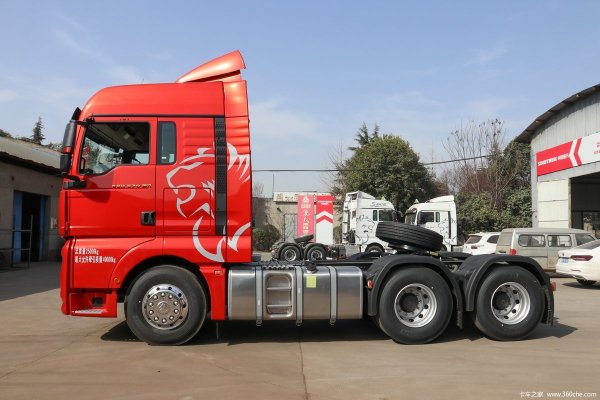

Sinotruk Sitrak 510HP C9H Tractor Truck AMT 6X4 10 Wheels Diesel Engine Tractor Truck

No.: Xeno_35

Vehicle Type: Tractor Head

Brand Name: SINOTRUK

Sinotruk Trucks

Person in charge: Marc Zhou

Cel: 8617664086916

Whatsapp: 8617664086916

E-mail: sales3@chinatruk.cc

FREE GET QUOTE
_20230914234530

Details

Main Technology Parameter

Model name

SINOTRUK SITRAK C9H TRACTOR TRUCK

Driving type

Left hand drive

Traction type

6X4

Scope of application

Transportation of industrial and daily   necessities

Color

Optional

Weights

Gross Vehicle Weight(kg)

25000

Curb weight(kg)

Approx.9300

Dimensions

Wheelbase(mm)

3300+1400mm

Overall dimension(mm)

Approx. 7100×2550×3980

Engine

Engine model

MC13H.51-61, 510HP

Emission standard

Euro 5

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

13.02L / Diesel

Max. output (kw)

380kW

Fuel Tanker

780L fuel tank

Drive Line

Gearbox

ZF12TX2620 TD

12 speeds, 12 forwards, 2 reverse gear,

AMT geabox

Steering

Power steering, Bosch steering gear

Brake

Front axle disc brakes, dual rear axle drum   brakes

Cab

Cabin

C9H-E cab luxury version, double sleeper,   airbag seats Can be tipped forwardly, with inner A/C

Standard configuration

Air container,

Equipped with air deflector and side air   deflector

Axle

Front axle

VPD71DS 7.0T- Disc Brake

Rear axle

18T MCY12BGS self-adjusting arm double rear   axle with inter-wheel & inter-axle differential locks Double reduction   pneumatic brake

Speed ratio

2.85

Tire specification

Tire specification

Front aluminum alloy wheels + rear lightweight   wheels

12R22.5 (Low rolling resistance/international brand)

10 tires+1 spare part

Parameter

Maximum   speed (km/h)

89

Max. Gradeability

35(%)

Rear   overhang(mm)

833

Suspension

Front and rear few leaf springs (2/3)

Frame(mm)

TGA technology frame - version B

Saddle

90# JOST saddle

Bumper

Low bumper (non-metallic)

Fender

Integral fender

Power System

220V-1000W inverter power supply

Safety   devices

ABS(4S/4M)+ESC   Dual warning system (LDW+FCW); PPC

Imaging   system

Four directional camera

Air intake   system

Road version intake system

Auto Cruise   System

PPC   automatic cruise control

start mode

One   key start keyless entry
