Model name

SINOTRUK SITRAK G7 TRACTOR TRUCK

Driving type

Left hand drive

Traction type

4X2

Scope of application

Transportation of industrial and daily   necessities

Color

Optional

Weights

Gross Vehicle Weight(kg)

Approx.6800

Gross Combination Weigh(kg)

Approx.50000

Dimensions

Wheelbase(mm)

3900mm

Overall dimension(mm)

Approx. 6520×2496×3980

Engine

Engine model

MC13.48-61, 480HP

Emission standard

Euro 5

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

12.419L / Diesel

Max. output (kw)

353kW

Fuel Tanker

860L+240L dual fuel tank

Drive Line

Gearbox

HW25716XAL

16 speeds, 16 forwards, 2 reverse gear,

AMT geabox

Steering

Power steering, Bosch steering gear

Brake

Front axle disc brakes, dual rear axle drum   brakes

Cab

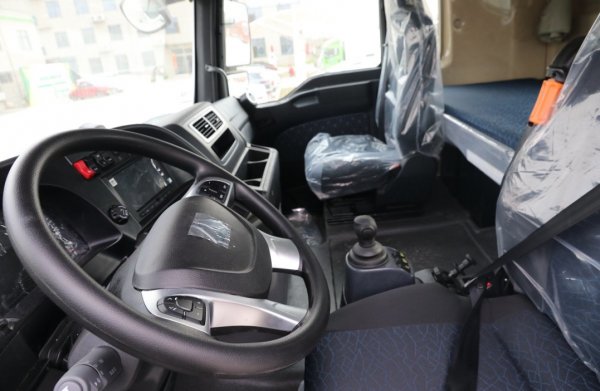

Cabin

G7-G cab Elite version, double sleeper, airbag   seats

Can be tipped forwardly, with inner A/C

Standard configuration

Air container,

Equipped with air deflector and side air   deflector

Axle

Front axle

VPD71DS - Disc Brake

Rear axle

MCJ12BES - Disc Brake, with inter-wheel &   inter-axle differential locks

Double reduction pneumatic brake

Speed ratio

2.85

Tire specification

Tire specification

Front aluminum alloy wheels + rear lightweight   wheels

12R22.5 (Low rolling resistance/international brand)

6 tires+1 spare part

Parameter

Maximum   speed (km/h)

89

Max. Gradeability

35(%)

Front track   width

2022mm

Rear track   width

1816mm

Suspension

Front   few leaf springs (2); Rear air suspension

Frame(mm)

TGA technology frame - version B

Saddle

90# JOST saddle

Bumper

Low bumper (non-metallic)

Fender

Integral fender

Power System

180AH battery

Safety   devices

ABS(4S/4M)+ESC

Imaging   system

Four directional camera

exhaust   system

Standard version exhaust system
