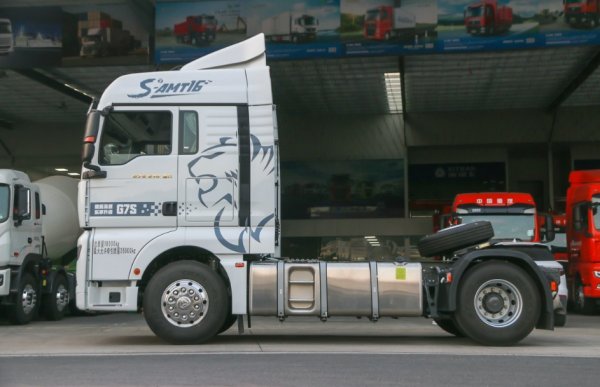

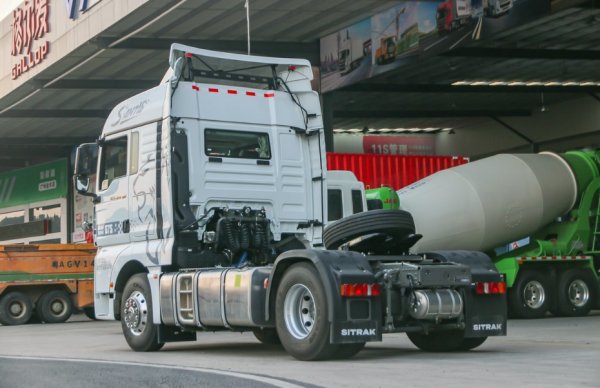

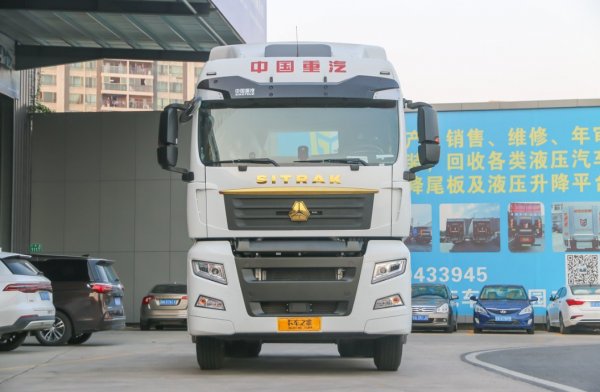

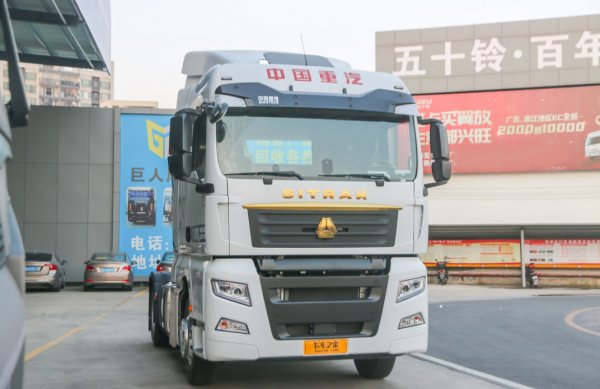

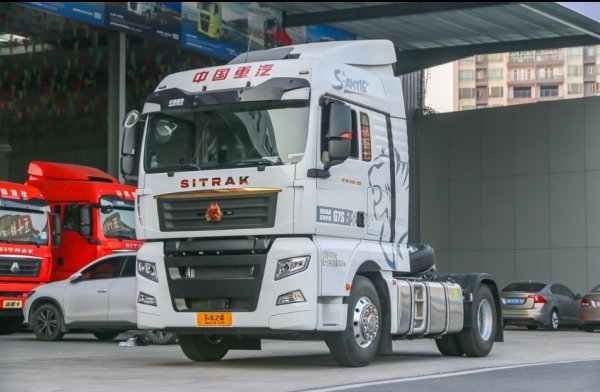

Sinotruk Sstrak G7S Tractor Truck 4X2 510HP AMT Tractor Truck

No.: Xeno_35

Vehicle Type: Tractor Head(Ru)

Brand Name: SINOTRUK

Sinotruk Trucks

Person in charge: Marc Zhou

Cel: 8617664086916

Whatsapp: 8617664086916

E-mail: sales3@chinatruk.cc

FREE GET QUOTE
_20230914234530

Details

Main Technology Parameter

Model name

SINOTRUK SITRAK G7S TRACTOR TRUCK

Driving type

Left hand drive

Traction type

4X2

Scope of application

Transportation of industrial and daily   necessities

Color

Optional

Weights

Gross Vehicle Weight(kg)

Approx.6800

Gross Combination Weigh(kg)

Approx.50000

Dimensions

Wheelbase(mm)

3900mm

Overall dimension(mm)

Approx. 6520×2496×3980

Engine

Engine model

MC13H.51-61, 480HP

Emission standard

Euro 5

Engine type

4 stroke water-cooled, inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

13.02L / Diesel

Max. output (kw)

378kW

Fuel Tanker

1000L+300L dual fuel tank

Drive Line

Gearbox

HW25716XAL

16 speeds, 16 forwards, 2 reverse gear,

AMT geabox

Steering

Power steering, Bosch steering gear

Brake

Front axle disc brakes, Rear axle drum brakes

Cab

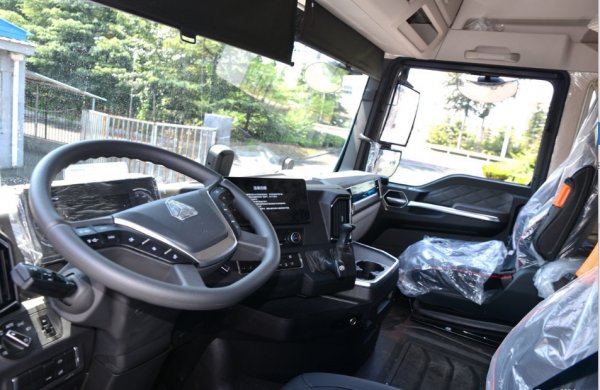

Cabin

G7S-E cab Luxury version, double sleeper, airbag   seats, 12.3-inch full HD LCD central control screen (MP5)

Can be tipped forwardly, with inner A/C, Manual   Sunroof

Standard configuration

Air container,

Equipped with air deflector and side air   deflector

Axle

Front axle

VPD71DS - Disc Brake

Rear axle

MCY13JGS, with inter-wheel & inter-axle   differential locks

Double reduction pneumatic brake

Speed ratio

2.85

Tire specification

Tire specification

Front aluminum alloy wheels + rear lightweight   wheels

12R22.5 (Low rolling resistance/international brand)

6 tires+1 spare part

Parameter

Maximum   speed (km/h)

89

Max. Gradeability

35(%)

Suspension

Front and rear few leaf springs (3/5)

Frame(mm)

TGA technology frame

Saddle

50# JOST saddle

Bumper

Low bumper (non-metallic)

Fender

Integral fender

Power System

180AH battery; 220V-1000W inverter power supply

Safety   devices

ABS(4S/4M)+ESC

Imaging   system

Four directional camera

Exhaust   system

Standard version exhaust system

Early   warning system

LDW+FCW dual warning system
