混凝土最大出口压力Maximum theorical pressure on concrete                  MPa

8/13

额定工作压力 Rated working pressure                             MPa

35

泵送频率Pumping frequency                                     min-1

28/17

料斗容积  Hopper volume                                         L

550

上料高度 Filling height                                          mm

1540

液压系统型式 Hydraulic circuit

开式 Open

分配阀形式 Transfer tube

S阀 S Valve

油缸缸径×行程Cylinder (diam. × stroke)                            mm

Φ140×1650

混凝土缸径×行程Concrete cylinders (diam. × stroke)                  mm

Φ230×1650

液压油冷却 Hydraulic oil cooling

风冷 Air cooling

推荐塌落度 Concrete slump range                                  cm

12~23

最大骨料尺寸 Max. diameter of pumping concrete aggregate            mm

40

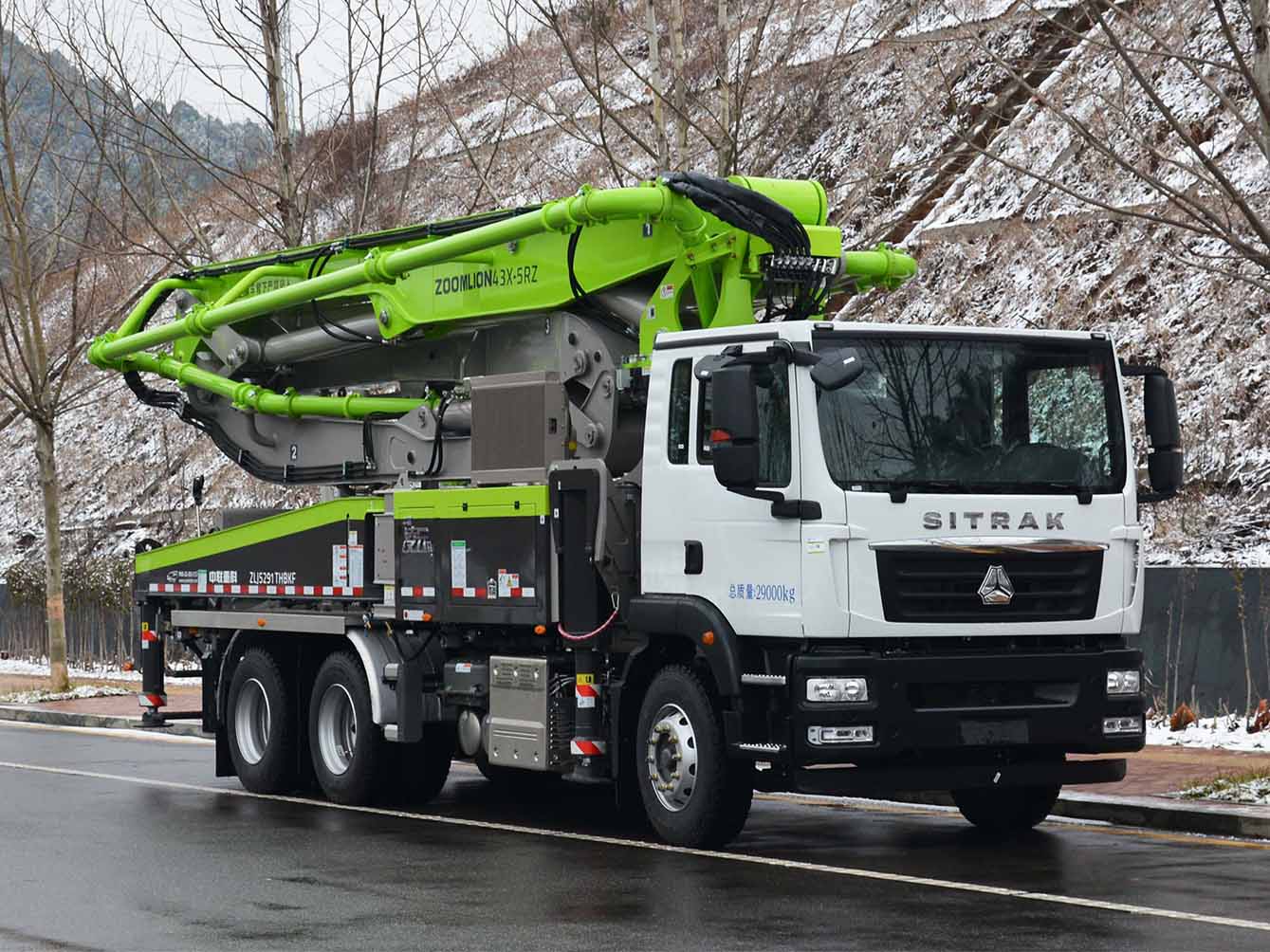

型号 Model

43X-5RZ

最大布料高度 Reach height                                        m

42.3

最大布料半径 Slewing radius                                       m

37.7

最大布料深度 Reach depth                                         m

29.7

回转角度 Rotation angle

360°

臂节数量 Section numbers

5

臂节长度  Arm section length                                     mm

8350/6720/6700/8030/8500

展臂角度 Unfolding angle

90°/180°/180°/240°/195°

输送管直径 Pipeline diameter                                     mm

125

末端软管长度  End hose length                                   mm

3000

臂架最小打开高度Minimum unfolding height                        mm

10100

支腿跨距（前×后×纵向）Longitudinal span of stabilizer               mm

7980×7990×7910

底盘型号Model

ZZ5336N464GF1

轴距 Wheelbase                                               mm

4275+1400

发动机型号 Engine model

MC07H.35-60

发动机额定功率 Rated power                            kW/（r/min）

257/2200

发动机最大扭矩 Max. torque                            N.m/（r/min）

1400/（1200～1600）

发动机排量 Displacement                                        cc

7360

燃油箱容积 Volume of diesel box                                   L

400

尾气排放标准 Emission standard

国三 Euro 3

整车质量  Overall weight                                         kg

29000

整车外形尺寸(长×宽×高) Outline dimension                         mm

11050×2530×3900

润滑方式 Lubrication method

节能式自动润滑Automatic lubrication

液压油箱容积 Hydraulic tank volume                                 L

690

控制方式 Control method

手动+遥控 Panel+remote control

水泵最大压力Maximum pressure  of water pump                    MPa

7

水箱容量 Volume of water box                                      L

350

混凝土管清洗方式 Concrete pipe cleaning methods

水洗/干洗 Washing/dry cleaning
