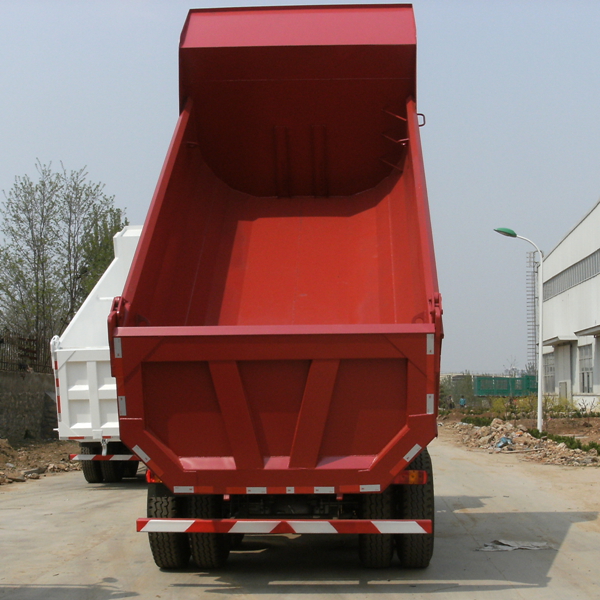

Main tipper model

ZZ4257N3847C1CB/N9WA

Cabin

Model

HW76

Type

lengthen cabin,single sleeper,adjustable steering wheel,VDO panel,control module,safe belt with 2 locks,outer sun shade

Engine

Model

WT615.95

Rated power kw/rpm

247/2200

Max.Torque nm/rpm

1350/1200-1600

Discharge L

9.726

type

6 cylinder inline,turbo charger inter cooled,2 valves,postposition supercharger

Gear box

430 single pplate dry diaphragm,hydraulically with air assist

Transmission

SINOTRUK HW series 10 speeds,main and auxiliary box structure,the main box double counter

shaft planetary reducer,with power take off

Suspension

Semi elliptic leaf springs+shock absorber+stabilizer

Brake system

Driving brake:dual circuit compress air brake;parking brake:spring energy,compressed air operating at rear wheel;

auxiliary:EVB+engine exhaust(ABS is available)

Tyre

12.00-20;(11.00-20 available)

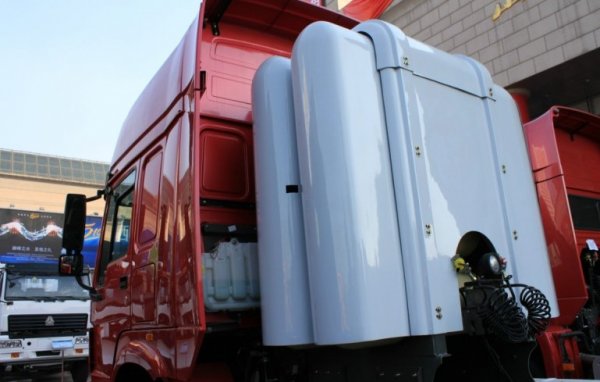

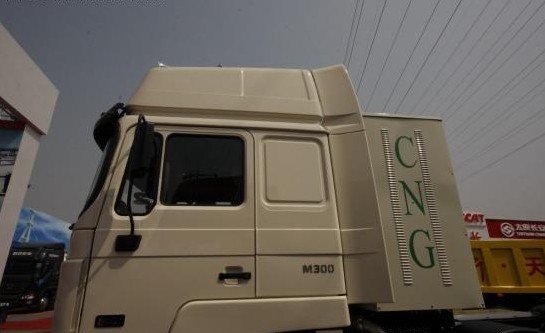

Gas tank capacity   L

8pcsX140L/pc behind cabin,4pcsX80L/pc at truck side

Payload kg

9210

Gross vehicle weight  kg

25000

Loading capacity of saddle  kg

15660

Overall size mm

7390x2496x2958

Axle base mm

3825+1350

Wheelbase mm

2022/1850

Min.Ground clearance mm

263

Max.Speed km/h

102

Max.Climbing capacity%

Over 40

Min.Turning circle

15
